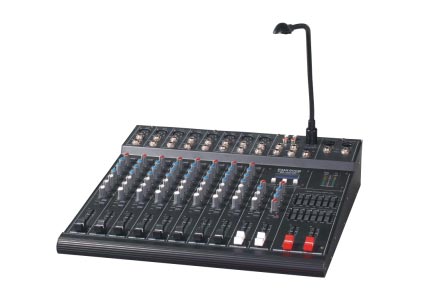

EMX mixer

EMX - 600 - b, 800 b, 1000 b, 1200 b, 1600 b

This is a mixer can be used for real. Has a perfect sound quality sound

With 40 v phantom power supply

SMT SMT process

With the effect of 24 - bit DSP digital chips

Two main output, all the way to monitor the output, effect all the way to send

DJ LED lights

Low noise design of the external power supply

The TECHNICAL parameters of the TECHNICAL SPECIFICATIONS

Input channel: balance or imbalance type line input

Frequency response: 20 hz to 20 KHZ + 1 db

Microphone input sensitivity: - 65 db ~ ~ 20 db

Db gain range: - 5 ~ + 60 db

Line input range: - 40 db - + 10 db SNR: greater than or equal to 95 db

Distortion: less than or equal to 0.03% (+ 4 db, 1 KHZ) maximum input: + 22 db

Balanced: high-frequency: 10 kz, intermediate frequency: 2 kz; Low frequency: 120 hz + 15 db

Maximum output: + 22 db balance; + 16 db imbalance

Results: 24 - BITDSP processor, 48 KHZ sampling frequency, 21 kinds of effect model, each mode of adjustable parameters, parameter memory, LCD display screen

Left and right channel separating degree: greater than 92 db

Power supply: AC100-120 v / 120-240 - v; 50/60 hz
