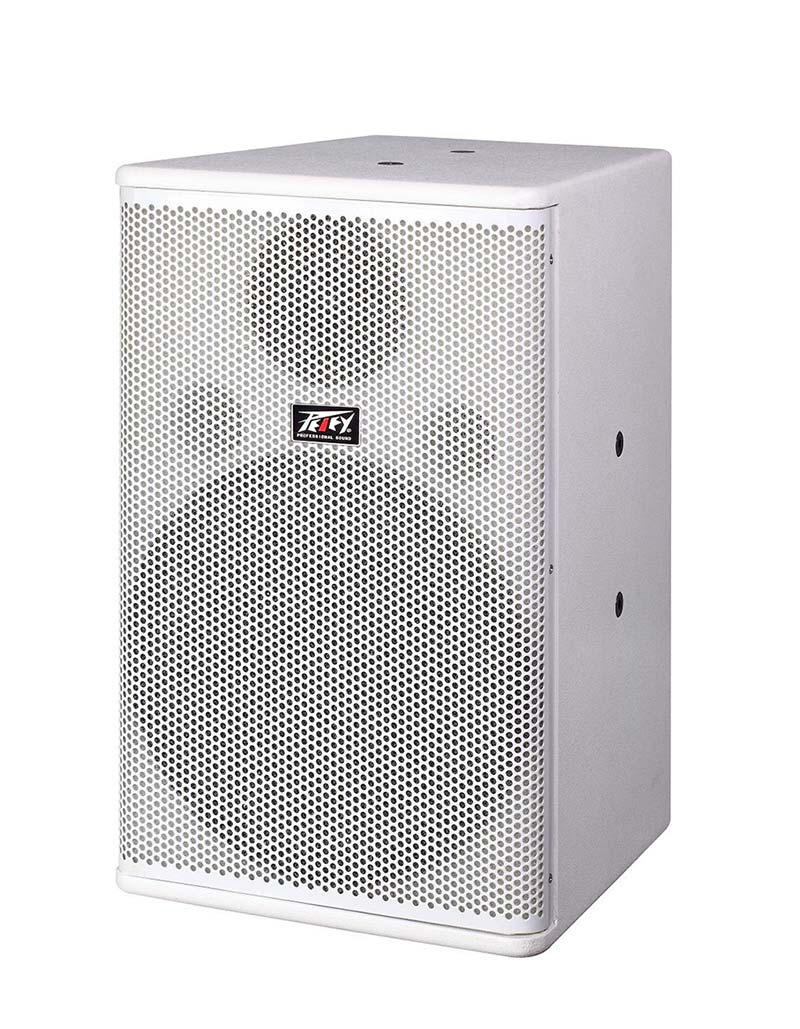

J series conference speakers
2 2 road divider trapezoidal symmetrical design, box use high-density fiberboard in environmental protection, sound box plate before using 9 mm woodiness plywood, better facilitate sperker fixed and servicing, iron net USES a 1.0 cold-rolled steel plate stamping molding, to ensure the overall consistency and the degree of sound, body surface using environmental protection clip figure painting easier for indoor use, high-grade, unique.Multipoint hanging design easier to various kinds of design and installation.
Bass unit using a 8 -inch 38 core 120 magnets, waterproof bass unit, bass, intermediate frequency plump and strong,
High use (208) 1 inch high silk membrane, 70 pairs of magnetic design carrying power is bigger, the high-frequency exquisite. Clear, mellow. Bright, can satisfy all kinds of meetings and background amplification is used.
技 術 參 數 TECHNICAL SPECIFICATIONS |
||
型 號 |
MODE |
J-801 |
系 統 組 成 |
SYSTEM COMPOSITION |
兩路二單元會議音箱 |
揚 聲 器 |
LOUDSPEAKER |
低音:8寸*1 38芯120磁 |
高音:1寸*2絲膜高音 90磁 |
||
額 定 阻 抗 |
(OHM)NOMINAL LMPEDANCE |
8歐 |
額 定 功 率 |
(W)POWER RATING |
150W |
最大 承受 功率 |
(W)MAXIMUM INPEDANCE |
250W |
頻 響 範 圍 |
(HZ)FERQUENCY RESPONSE |
60-18KHZ |
靈 敏 度 |
(DB)SENSITIVITY(1W/ |
96DB |
聲 壓 級 |
(DB)SOUND PRESSURE LEVEL(SPL) |
98DB(峰值) |
覆 蓋 角 度 |
NOMINAL COVERAGE |
110*60 |
連 接 插 孔 |
CONNECTOR |
NL4MP*2 |
吊 掛 |
HANG |
Φ8螺絲*22 |
產 品 尺 寸 |
(W*D*H)DIMENSIONS |
385*242* |
