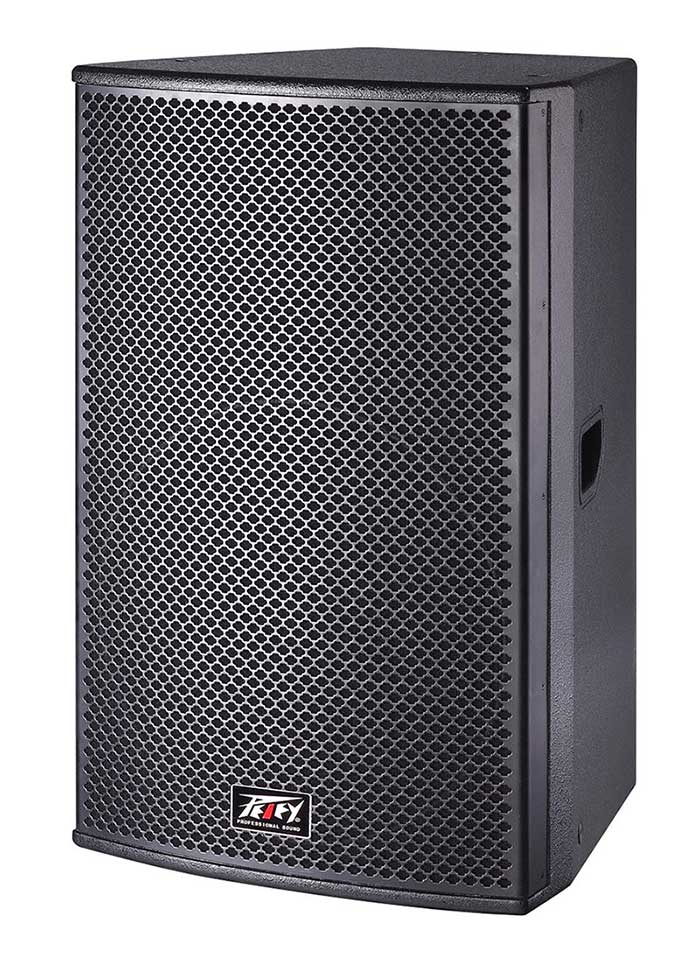

DS係列是我司針對目前高檔酒吧, HI房. 慢搖 多功能廳.廳堂室等多用途而設計開發的,全係列音箱全部采用18mm夾板精工進槽製作而成保證箱體整體結構堅固,耐用.箱體外觀采用台灣綠色水性環保油漆.油漆表麵漆膜硬度,彈性均有提高,同時還具有防水.耐磨. 耐腐蝕.附著力強等特點.延長了音箱的使用壽命. 鐵網采用全新十字梅花網孔1.5mm防鏽處理鋼板模具衝壓而成.內貼3mm海綿即起到防塵作用也提高了音箱的整體美觀。全頻音箱特殊梯形箱體設計,除多點模式標準吊掛裝置外,在箱體底部還設有金屬支架孔,可滿足不同場所的安裝使用要求. 可同LX-18、LX-218超低頻箱組合在一起使用,會有更佳的音場效果。
DS series is our company aiming at high-end bar, HI. Slow wave function. Hall room is multi-purpose and design and development, full range speakers are all made of 18 mm plywood produced by seiko into the tank to ensure enclosure structure solid, durable. Body appearance with Taiwan green water-based environmental protection paint. Paint film surface hardness, elasticity were increased, at the same time also has waterproof. Wear-resisting. Corrosion. Strong adhesion force, etc. To extend the service life of the speakers. Iron network using new cross plum flower mesh 1.5 mm antirust processing steel plate stamping mould. Post within 3 mm sponge is dustproof effect also improves the speaker's overall appearance.All frequency speaker special trapezoidal cabinet design, in addition to the more standard hanging device model, also have metal stent hole at the bottom of the box body, can meet the installation requirement of different place. But with LX - 18, LX - 218 ultra-low frequency box used together, can have a better sound effect.
技 術 參 數 TECHNICAL SPECIFICATIONS |
||
型 號 |
MODE |
DS-15 |
系 統 組 成 |
SYSTEM COMPOSITION |
兩路二單元二分頻音箱 |
揚 聲 器 |
LOUDSPEAKER |
低音:15寸*1 100芯220磁 |
高音:75芯*1 鈦膜高音 |
||
額 定 阻 抗 |
(OHM)NOMINAL LMPEDANCE |
8歐 |
額 定 功 率 |
(W)POWER RATING |
700W |
最大 承受 功率 |
(W)MAXIMUM INPEDANCE |
2800W |
頻 響 範 圍 |
(HZ)FERQUENCY RESPONSE |
43-20KHZ |
聲 壓 級 |
(dB)SOUND PRESSURE LEVEL(SPL) |
136dB(峰值) |
覆 蓋 角 度 |
NOMINAL COVERAGE |
90*70 |
灵 敏 度 |
(dB)Sensitivity(1w/1m) |
103dB |
產 品 尺 寸 |
(W*D*H)DIMENSIONS |
710*440* |
