VP係列是我司針對目前高檔量販式KTV, 會所、夜總會、酒吧等使用途環境緊跟流行的潮流而設計開發的。
全係列音箱全部采用華雜夾板精工進槽製作而成保證箱體整體結構堅固,耐用.箱體表麵噴塗采用台灣綠色水性環保漆.油漆表麵漆膜硬度、彈性均有提高,同時還具有防水.耐磨. 耐腐蝕.附著力強、提升了環保意識等特點.延長了音箱的使用壽命.
鐵網采用1.5mm防鏽處理冷軋鋼板,六角孔模具衝壓而成.表麵采用工藝要求更高的噴砂工藝,內貼3mm海綿即起到防塵作用也提高了音箱的整體美觀。
全頻音箱采用後導向開孔、特殊梯形箱體及號角設計,無論垂直、水平安裝,80*70覆蓋角度都可以提高均勻平坦的覆蓋範圍,除多點模式,標準吊掛裝置外,在箱體底部還設有金屬支架孔,可滿足不同場所的安裝使用要求. 可同單18、雙18超低頻箱組合在一起使用,會有更佳的音場效果。
VP係列音箱采用世界先進的BASSBOX-OVER輔助設計軟件和DAAS聲學測試軟件設計而成,頻響曲線平滑,高頻清澈透亮、中頻自然飽滿圓潤,低頻強勁有力富有包圍感。高低音單元均采用釹磁設計,靈敏度高,音色通透飽滿
采用獨特的振膜處理技術及平滑的分頻設計電路,保證高音通透明亮細膩又不易嘯叫,中頻圓潤飽滿,人聲表現豐富。PTC高音保護電路有效的減少了高音的損壞。

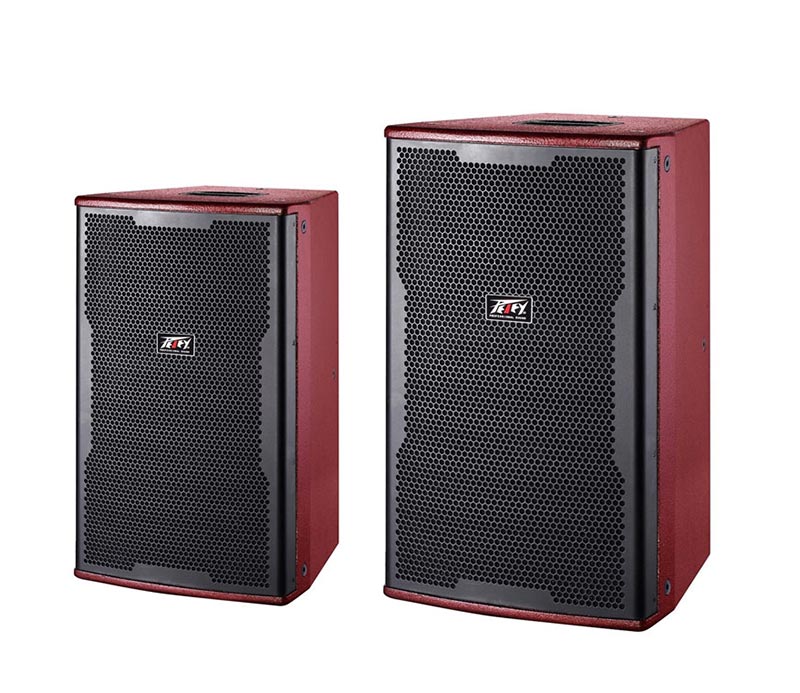

VP series is our company based on the current high volume type KTV, clubs, nightclubs, bars the use environment such as follows the popular fashion and design and development.
Full range speakers are all made of complex plywood produced by seiko into the tank to ensure enclosure structure solid, durable. The body surface spray USES Taiwan green water-based environmental protection paint. Paint film surface hardness, flexibility were increased, at the same time also has waterproof. Wear-resisting. Corrosion. Strong adhesion force, promote the environmental protection consciousness, etc., prolong the service life of the speaker.
Cold rolled steel sheet iron network using 1.5 mm antirust processing, hexagonal hole stamping mould. Surface using higher sand blasting process technological requirements, with 3 mm sponge is dustproof effect also improves the speaker's overall appearance.
All frequency sound box with the guide hole and the horn design, special trapezoidal enclosure, regardless of the vertical and horizontal installation, 80 * 70 cover Angle can improve the uniform flat coverage, in addition to more model, standard hanging device, also has a metal bracket hole at the bottom of the box body, can meet the installation requirement of different place. But with single 18, double 18 ultra-low frequency box used together, can have a better sound effect.
VP series speaker adopts world advanced BASSBOX - OVER aided design software and DAAS acoustic test software design, smooth frequency response curve, the high frequency of intermediate frequency natural and clear and bright, full round, surrounded by low-frequency strong rich feeling.High and low unit adopts magnetic neodymium design, high sensitivity, sound appear a full
Adopt unique vibration membrane treatment technology and smooth frequency division circuit design, ensure the high transparent bright subtle and difficult to screaming, intermediate frequency sections satiated, rich in vocal performance.PTC high protection circuit reduces the damage of high effectively.
技 術 參 數 TECHNICAL SPECIFICATIONS | |||
型 號 |
MODE |
VP-10 |
VP-12 |
系 統 組 成 |
SYSTEM COMPOSITION |
兩路二單元二分頻音箱 |
兩路二單元二分頻音箱 |
揚 聲 器 |
LOUDSPEAKER |
低音:10寸*1 65芯156磁 |
低音:12寸*1 75芯180磁 |
高音:34芯*1 鈦膜高音 |
高音:44芯*1 鈦膜高音 | ||
額 定 阻 抗 |
(OHM)NOMINAL LMPEDANCE |
8歐 |
8歐 |
額 定 功 率 |
(W)POWER RATING |
250W |
400W |
最大 承受 功率 |
(W)MAXIMUM INPEDANCE |
450W |
800W |
頻 響 範 圍 |
(HZ)FERQUENCY RESPONSE |
45-20KHZ |
45-20KHZ |
聲 壓 級 |
(DB)SOUND PRESSURE LEVEL(SPL) |
116DB(峰值) |
118DB(峰值) |
覆 蓋 角 度 |
NOMINAL COVERAGE |
90*70 |
90*70 |
連 接 插 孔 |
CONNECTOR |
NL4MP*2 |
NL4MP*2 |
產 品 尺 寸 |
(W*D*H)DIMENSIONS |
524*300* |
558*362* |
