产品展示
PRODUCTS

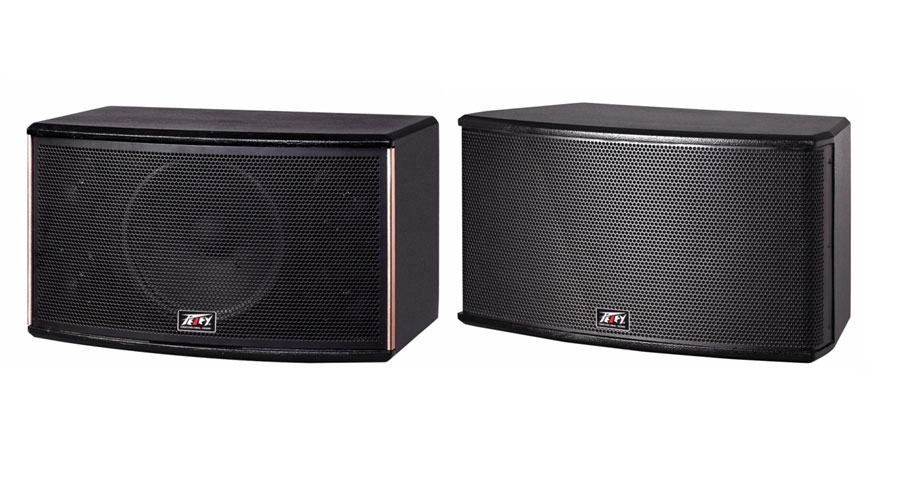

K-300   K-500

       K-300\K-500,是我司針對目前高檔量販式KTV而設計開發的10寸單元三路三分頻的KTV音箱,外觀采用專業音箱不對稱梯形的設計風格,配以多點吊掛結構可滿足多種不同形式固定安裝的實現。
       K-300\K-500,音箱采用世界先進的BASSBOX-OVER輔助設計軟件和DAAS聲學測試軟件設計而成,頻響曲線平滑,高頻清澈透亮、中頻自然飽滿圓潤,低頻強勁有力富有包圍感。
      (1) 單元布局采用對稱錯位高音擴散角度漸變的排列布局,使聲表麵實現立體多維均勻的廣角覆蓋。
      (2) 單元采用台資TIANSOUT公司專門設計生產的單元。低音強勁有力,包圍感豐滿.中音圓潤飽滿,高音清晰細膩,聲像準確、細節豐富,臨場感、包圍感強。又具備大功率穩定耐用的特點。



       K - 300/K -500, it is our company based on the current high volume type KTV and design and development of 10 inch unit 3 road three points frequency KTV speaker, appearance using professional speakers asymmetric trapezium design style, with a multipoint hanging structure can meet the implementation of a variety of different forms of fixed installation.
       K - 300/K -500, sound box adopts world advanced BASSBOX - OVER aided design software, and acoustic test software design and become, DAAS frequency response curve is smooth, high frequency of intermediate frequency natural and clear and bright, full fruity, surrounded by low-frequency strong rich feeling.
Layout (1) unit adopts the symmetrical dislocation high diffusion Angle gradient array layout, make sound surface stereo multi-dimensional uniform wide coverage.
          (2) the unit adopts the taiwan-owned TIANSOUT company specialized design production unit.Bass strong feeling surrounded fullness. Alto plump, high clear delicate, audio-visual accurate, detailed, telepresence, surrounded by feeling.And has the high power stable and durable characteristics.



技 術 參 數    TECHNICAL SPECIFICATIONS





 MODE

K-300

K-500



SYSTEM COMPOSITION

三路五單元卡包音箱

三路五單元卡包音箱



LOUDSPEAKER

低音:10*1 51120

低音:10*1 51120

高音:3*4高音 65

高音:3*4高音 65



(OHM)NOMINAL LMPEDANCE

8

8



W)POWER RATING

250W

280W

最大 承受 功率

(W)MAXIMUM INPEDANCE

350W

350W

     範 圍

(HZ)FERQUENCY RESPONSE

48-20KHZ

45-20KHZ



(DB)SENSITIVITY(1W/1M)

96DB 1M/1W

96DB 1M/1W



(DB)SOUND PRESSURE LEVEL(SPL)

101DB(峰值)

101DB(峰值)



NOMINAL COVERAGE

110*60

110*60



CONNECTOR

NL4MP*2

NL4MP*2



HANG

Φ8螺絲*22

Φ8螺絲*22



(W*D*H)DIMENSIONS

499*316*292MM

523*316*292MM

 销售价:1800/只
